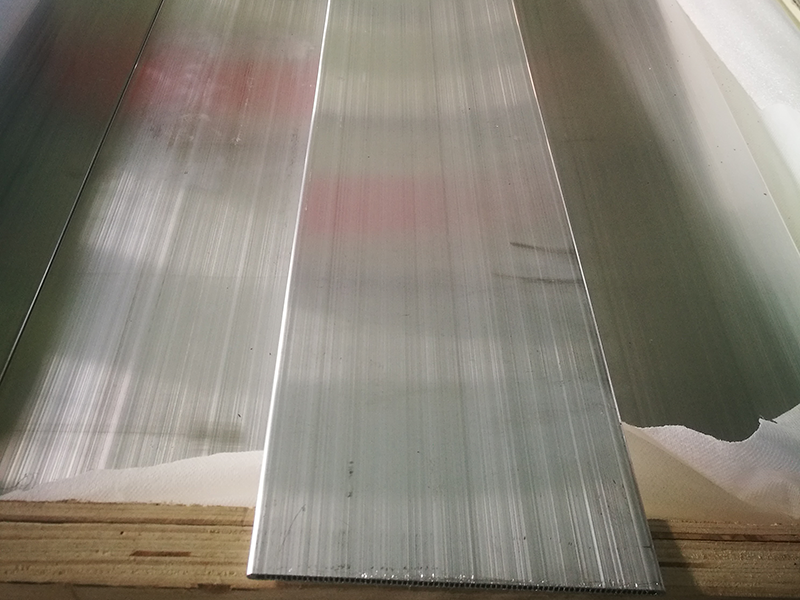

parallel flow aluminum tube tubing

Parallel flow aluminum tube tubing is mainly used for the production of heat exchangers. Due to its high corrosion-resistance & good heat conductivity, Parallel flow aluminum tube tubing is particularly well suited for the use in evaporators & condensers. Parallel flow aluminum tube tubing is required increased burst strength and better heat conductivity for an optimized product size.



The Parallel flow aluminum tube tubing is unique tubes developed with the highest manufacturing quality and is characterized by the following properties:
1. Low weight
2. Good thermal and electricity conductivity
3. Good forming and bending capability
4. Good corrosion and pressure resistance
5. High recycling value
6. Narrow tolerance range
7. High surface quality

Commonly used material chemical composition of Parallel flow aluminum tube tubing:

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
2	1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.10	---	---
3	3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
4	3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05
