1.The Introduction of Aluminum Radiator Flat Tube
Micro-channel aluminum flat tube is a thin-walled porous flat tube material using refined aluminum rods, hot extrusion, and zinc spray-proof treatment on the surface.
As a pipeline component carrying new environmentally friendly refrigerants, using of a new environmentally friendly system is the key material for a new generation of parallel flow microchannel air-conditioning heat exchangers. As a new type of environmentally-friendly refrigerant-carrying pipeline component, the micro-channel aluminum flat tube was first used in the automotive air-conditioning system. Mainly used in condensers, evaporators, air coolers etc parts of automotive air conditioning systems.
2.The Specifications of Aluminum Radiator Tube
The specific specifications are as follows:
1) Alloy: 1100, 1050, 1060, 1070, 1197, 3003, 3102, 3026, etc.
2) Temper: O / F / H111 / H112
3) Width: 6mm-240mm
4) Height: Above 0.8mm
5) Wall thickness:Above 0.12mm
6) Number of Ports: 2-75 Ports or according to customer drawing requirements

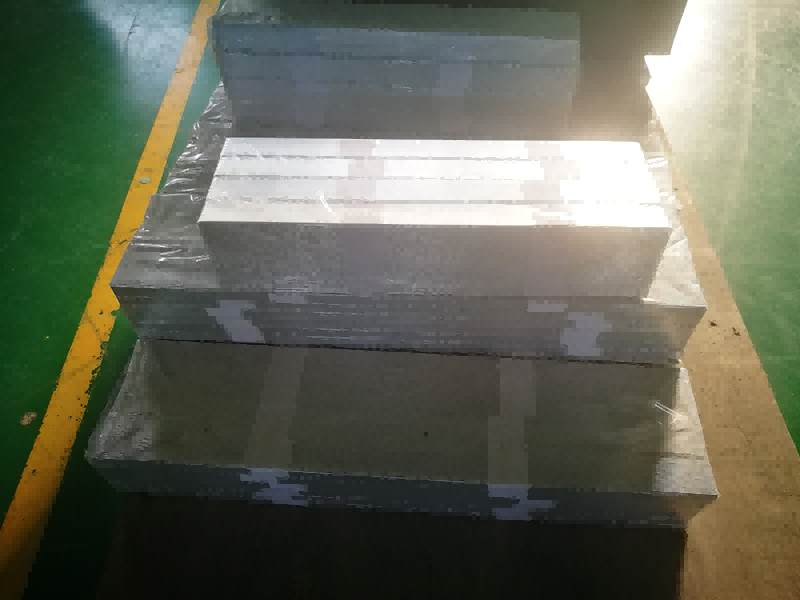

7) Delivery status: Coiled Flat Tubes or cut into different lengths according to customer requirements.
Length: 50-6000mm
8) The Specifications of Coiled aluminum flat tube:
Reel inner diameter: 400-550mm, etc.
Reel outer diameter: 700-1500mm, etc.
Reel height / width: 300-1000mm, etc.
Zinc layer weight: 6-8g / ㎡ or according to customer requirements
9) The product specification deviations see as below (The cross-sectional views see as below):
10)The mechanical tensile properties of the main alloys of Aluminum Radiator Tube in room temperature are as follows
11)The Pressure resistance of Aluminum Radiator Flat Tube
For flat tubes of water (oil) medium heat exchangers for automobile air conditioners, household or commercial air conditioners, and other purposes, the burst pressure should meet the requirements of the table below. When the purchaser has special requirements or the product is used for other purposes, the supplier and buyer can negotiate to determine the burst pressure.
3, The product characteristics of Aluminum Radiator Tube
1) The Aluminum Radiator Tube produced by our company has high formability, easy flaring and bending, and other forming operations
2) The Aluminum Radiator Tube produced by our company has high fatigue strength and corrosion resistance, and is suitable for the environment of the engine room.
3) Aluminum Radiator Flat Tube produced by our company are suitable for brazing and mechanical connection
4) The Aluminum Radiator Tube produced by our company have a long service life and good cost performance.
5) The Aluminum Radiator Tube produced by our company has the characteristics of small size deviation range and high surface quality
4.The Product application of Aluminum Radiator Flat Tube
The parallel flow aluminum tube for radiator produced by our company are mainly used in condensers, evaporators, air coolers, etc parts.
5. The current product drawings of Aluminum Radiator Flat Tube can be downloaded from product drawing. DOWNLOAD !
Micro-channel aluminum flat tube is a thin-walled porous flat tube material using refined aluminum rods, hot extrusion, and zinc spray-proof treatment on the surface.
As a pipeline component carrying new environmentally friendly refrigerants, using of a new environmentally friendly system is the key material for a new generation of parallel flow microchannel air-conditioning heat exchangers. As a new type of environmentally-friendly refrigerant-carrying pipeline component, the micro-channel aluminum flat tube was first used in the automotive air-conditioning system. Mainly used in condensers, evaporators, air coolers etc parts of automotive air conditioning systems.
2.The Specifications of Aluminum Radiator Tube
The specific specifications are as follows:
1) Alloy: 1100, 1050, 1060, 1070, 1197, 3003, 3102, 3026, etc.
2) Temper: O / F / H111 / H112
3) Width: 6mm-240mm
4) Height: Above 0.8mm
5) Wall thickness:Above 0.12mm
6) Number of Ports: 2-75 Ports or according to customer drawing requirements
7) Delivery status: Coiled Flat Tubes or cut into different lengths according to customer requirements.
Length: 50-6000mm
8) The Specifications of Coiled aluminum flat tube:
Reel inner diameter: 400-550mm, etc.
Reel outer diameter: 700-1500mm, etc.
Reel height / width: 300-1000mm, etc.
Zinc layer weight: 6-8g / ㎡ or according to customer requirements
9) The product specification deviations see as below (The cross-sectional views see as below):
| The deviation of Product specification | |
|
Specification W(Width) x H(Height）x L(Length） |
Allowable deviation （mm） |
| W(Width) :6mm-240mm | ± 0.2mm max |
| H(Height）:Above 0.8mm | ± 0.1mm max |
|
Plane wall thickness t1:Above 0.12mm |
± 0.1mm max |
| Support thickness: t2 | ± 0.1mm max |
| Side end wall thickness:t3 | ± 0.1mm max |
| L(Length）≤1000mm | ± 0.5mm |
| L(Length) ＞1000-2000mm | ± 1.5mm |
| L(Length) ＞2000- 6000mm | ± 2.0mm |
| Flatness | ≤0.2mm |
| Curvature(Every 300mm length） | ≤0.3mm |
| Curvature(Full length on L meter） | ≤1.0 x L(mm) |
|
Twisting degree （Full length on L meter） L ≤ 1 |
≤1.0 x L(mm) |
|
Twisting degree（Full length on L meter） L ＞ 1 |
≤1.0 (mm) |
| Note: The deviation range of product specifications can also be controlled according to customer requirements | |
10)The mechanical tensile properties of the main alloys of Aluminum Radiator Tube in room temperature are as follows
| Alloy | Temper |
Tensile Strength Rm MPa |
Yield Strength Rp0.2 MPa |
Elongation A50mm % |
| not less than | ||||
| 1050 | H112 | 60 | 20 | 23 |
| 1100 | 75 | 20 | 20 | |
| 3102 | 75 | 30 | 22 | |
| 3003 | 95 | 35 | 20 | |
| 3026 | 85 | 35 | 20 | |
11)The Pressure resistance of Aluminum Radiator Flat Tube
For flat tubes of water (oil) medium heat exchangers for automobile air conditioners, household or commercial air conditioners, and other purposes, the burst pressure should meet the requirements of the table below. When the purchaser has special requirements or the product is used for other purposes, the supplier and buyer can negotiate to determine the burst pressure.
| Bursting pressure Unit:MPa | ||||
| Automotive air conditioner heat exchanger | Household or commercial air-conditioning heat exchangers | Water (oil) medium heat exchangers for other purposes | ||
| Non-electric vehicle | Electric car | |||
| Condenser | Evaporator | |||
| ≥11.5 | ≥5.5 | ≥11.5 | ≥16.5 | ≥14.5 |
3, The product characteristics of Aluminum Radiator Tube
1) The Aluminum Radiator Tube produced by our company has high formability, easy flaring and bending, and other forming operations
2) The Aluminum Radiator Tube produced by our company has high fatigue strength and corrosion resistance, and is suitable for the environment of the engine room.
3) Aluminum Radiator Flat Tube produced by our company are suitable for brazing and mechanical connection
4) The Aluminum Radiator Tube produced by our company have a long service life and good cost performance.
5) The Aluminum Radiator Tube produced by our company has the characteristics of small size deviation range and high surface quality
4.The Product application of Aluminum Radiator Flat Tube
The parallel flow aluminum tube for radiator produced by our company are mainly used in condensers, evaporators, air coolers, etc parts.
5. The current product drawings of Aluminum Radiator Flat Tube can be downloaded from product drawing. DOWNLOAD !
