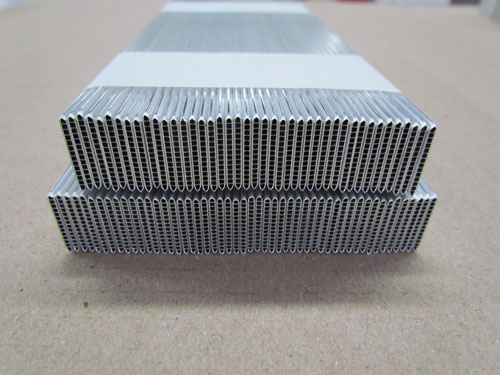

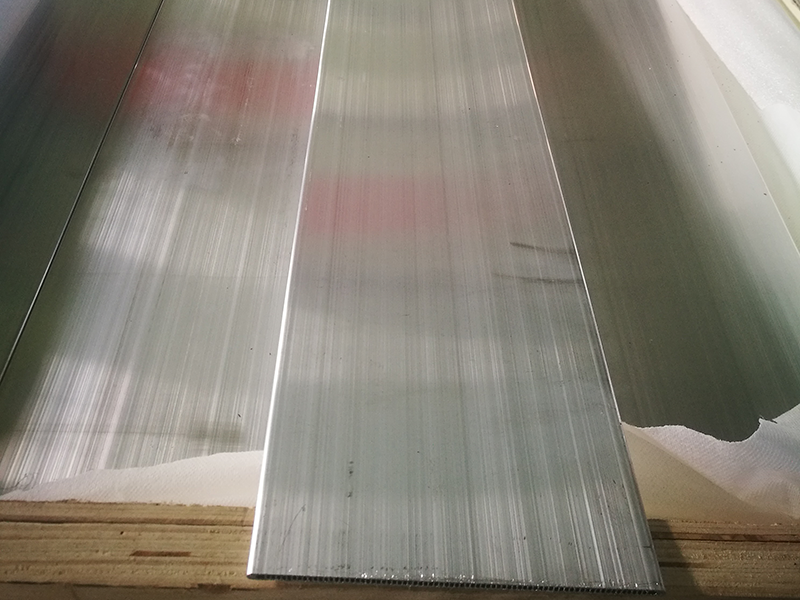

Specifications of multi port extruded aluminium tubes :
The multi port extruded aluminium tubes produced by our company has a maximum width of 230mm-240mm.
1)Alloy: 1100,1050,1060,1070,1197,3003,3102,3026, etc.
2) Temper: O/F/H111/H112
3) width: 6mm-240mm
4) Height: Above 0.8mm
5) Wall thickness:Above 0.12mm
6)Number of Ports: 2-75 Ports or according to customer drawing requirements
Zinc layer weight: 6-8g / mi or according to customer requirements .
Multi port extruded aluminium tubes is mainly used for the production of heat exchangers with high corrosion-resistance and good heat conductivity.
