extruded flat aluminum tube for radiator

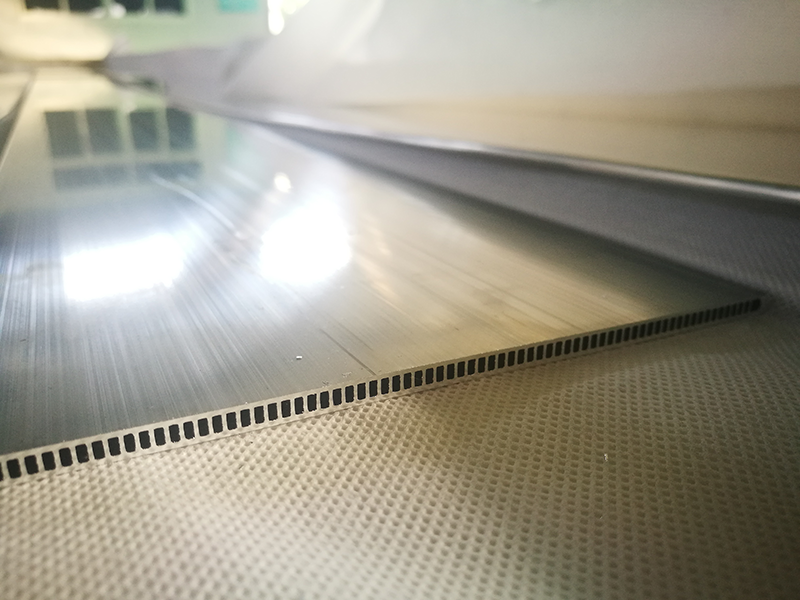

Extruded flat aluminum tube for radiator, also known as microchannel aluminum tube, whose cross section is oblate as a whole, and the inner surface is processed into a toothed structure. The extended flat aluminum tube for radiator connects several mutually parallel reinforcing ribs between the longer two tube walls. extruded flat aluminum tube for radiator adopts oblate and long aluminum tubes for heat dissipation, which significantly improves the heat dissipation effect and reliability of the automobile radiator, and eliminates the defects of the side leakage existing in the existing automobile radiator; the inner surface of the aluminum tube is processed into a toothed structure, which reduces the cost of raw materials and increases the surface area of the aluminum tubes for heat dissipation; the inner wall of the aluminum tube is provided with reinforcing ribs, which can effectively support the tube wall, so that the heat dissipation tube is not easy to be The damage greatly improves the quality and application range of the heat dissipation aluminum tube.



Characteristic

The flat aluminum tube for radiators is characterized in that: the cross section of the extruded flat aluminum tube for radiators is overall oblong, the inner surface of the extruded flat aluminum tube for radiators is processed into a toothed structure, the number of teeth is 16-18, the height of teeth is 1.10-1.25 mm, and the extruded flat aluminum tube for radiators is 1.10-1.25 mm Several stiffeners parallel to each other are connected between the longer two pipe walls in the radial.
