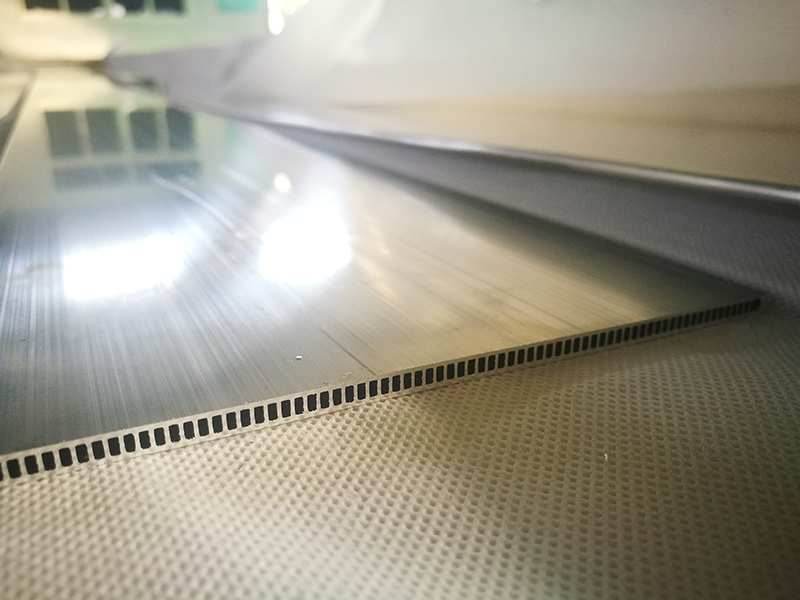

aluminum multi-port extrusions

aluminum multi-port extrusions is the core materials of new generation parallel flow air conditioning heat exchangers. It is outstanding in enviromental-friendly, efficient, energy-saving and cost reduction and was approved vividly in automobile air conditioning system. With restriction and prohibition of the application of the traditional refrigerant, it is a trend that household and commerical air conditioning heat exchanger needs revolution.



Description of aluminum multi-port extrusions:

NO.	DESCRIPTION	CONTENT
1	Material	AA1070,3003,6061,6063 are typical
2	Temper	F,T112,T3-T6,etc.
3	Length	Up to 6000mm
4	Width/Diameter	Up to 200mm
5	Height/Diameter	Up to 200mm
6	Wall thickness	0.25 to 10mm
7	Dimension tolerance	Follow up GB or ISO or custom
8	Shape	Round,oval,square,hex,rectangle,etc.
9	Surface finish	Mill finish,painting,powder coating,oxidation,etc.
10	Packing way	To be packed in wood crate or case
11	Application	Heat transfer,industrial,building fields
