Precision aluminum tubing

Precision aluminum tubing are unique tubes developed with highly refined manufacturing quality. With their large internal surface area, they can achieve more efficient heat transfer and hence are widely used in highly effective heat exchangers.



The Specifications of Precision aluminum tubing are as follows:
1)Alloy :1060  1050  3003  3102
2) Temper: OlF/H111/H112
3) width: 6mm-240mm
4) Height: Above 0.8mm
5) Wall thickness:Above 0.12mm
6) Number of Ports: 2-75 Ports or according to customer drawing requirements

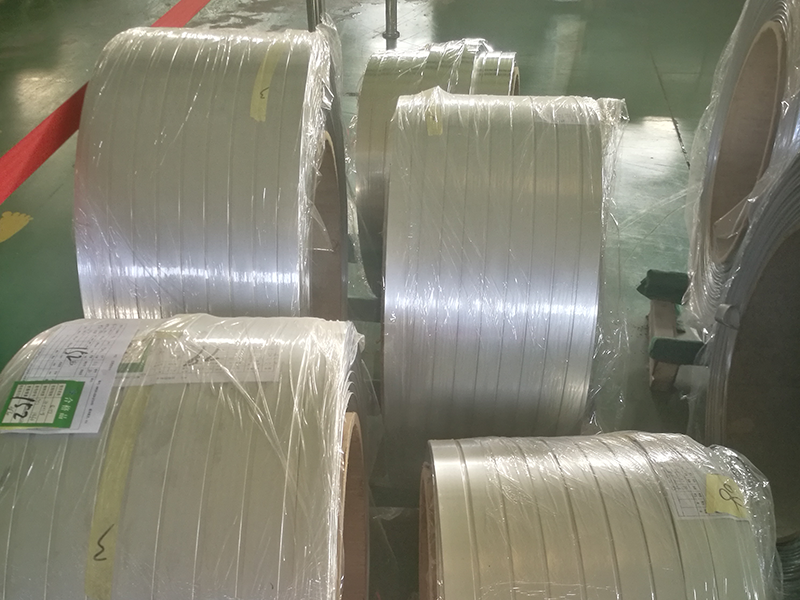

7) Delivery status: Coiled Flat Tubes or cut into different lengths according to customer requirements.Length: 50-6000mm
8) The Specifications of Coiled aluminum flat tube:Reel inner diameter: 400-550mm, etc.
Reel outer diameter: 700-1500mm, etc.Reel height / width: 300-1000mm, etc.
Zinc layer weight: 6-8g / mif or according to customer requirements
