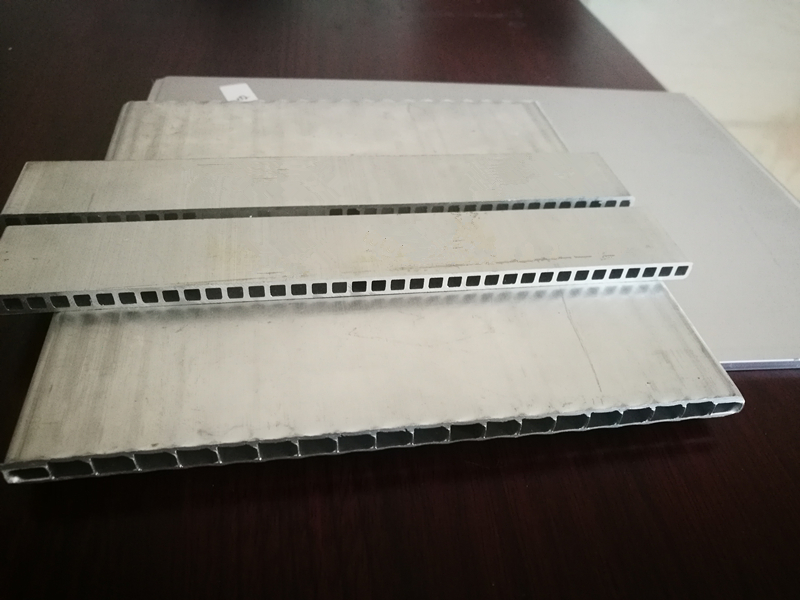

Parallel flow aluminum tube

Parallel flow aluminum tube (also known as "aluminum alloy porous microchannel tube") is a kind of porous sector thin-walled tubular material, only use new environmental protection refrigerant is used mainly for a variety of air conditioning system of the parallel flow heat exchanger (also called "microchannel heat exchanger" or "parallel flow microchannel heat exchanger"), is a kind of new environmental protection refrigerants used in air conditioning system pipeline carrying parts material, first of all have mandatory requirements on automotive air conditioning system, currently in the field of residential and commercial air conditioning also has the certain application.



Parallel flow aluminum tube commonly used material data sheet :

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
2	1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.10	---	---
3	3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
4	3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05




Alloy	Temper	Tensile Strength	Yield Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥20MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥20MPa	≥25%

Micro channel aluminium tube has larger internal section area, better effectiveness for heat transfer. At the same time, has the following characteristics:
1. Low weight
2. Good thermal and electricity conductivity
3. Excellent corrosion resistance
4. High cycle reuse value
5. High surface quality
6. Narrow tolerance range
7. High pressure resistance
