Micro-extrusion extruded plate

 News     |      2021-04-17 08:50

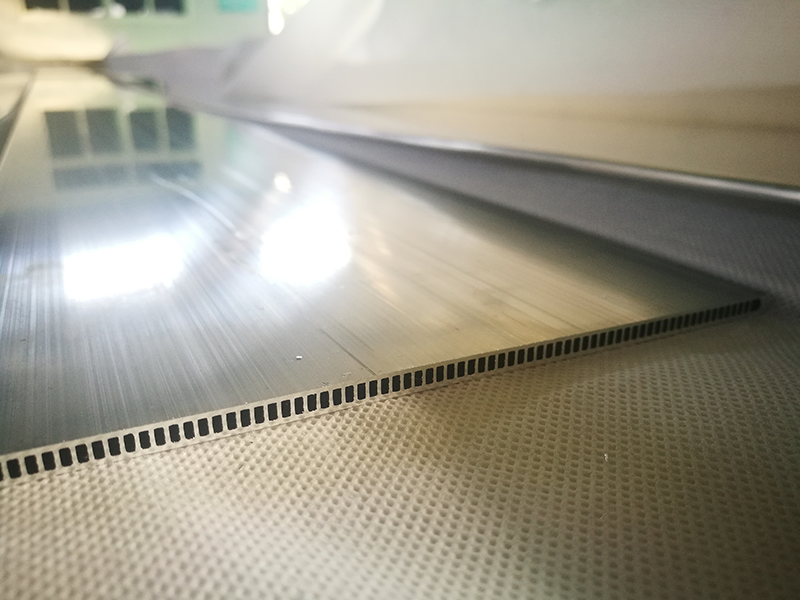

Micro-extrusion extruded plate is made of several channels that increase the heat transfer through a higher surface per volume ratio.



Specifications of Micro-extrusion extruded plate
The Micro-extrusion extruded plate produced by our company has a maximum width of 230mm-240mm.
  1. Alloy: 1100,1050,1060,1070,1197,3003,3102,3026, etc.
2) Temper: O/F/H111/H112
3) width: 6mm-240mm
4) Height: Above 0.8mm
5) Wall thickness:Above 0.12mm
6)Number of Ports: 2-75 Ports or according to customer drawing requirements
Zinc layer weight: 6-8g / mi or according to customer requirements .

Micro-extrusion extruded plate is mainly used for the production of heat exchangers with high corrosion-resistance and good heat conductivity.
