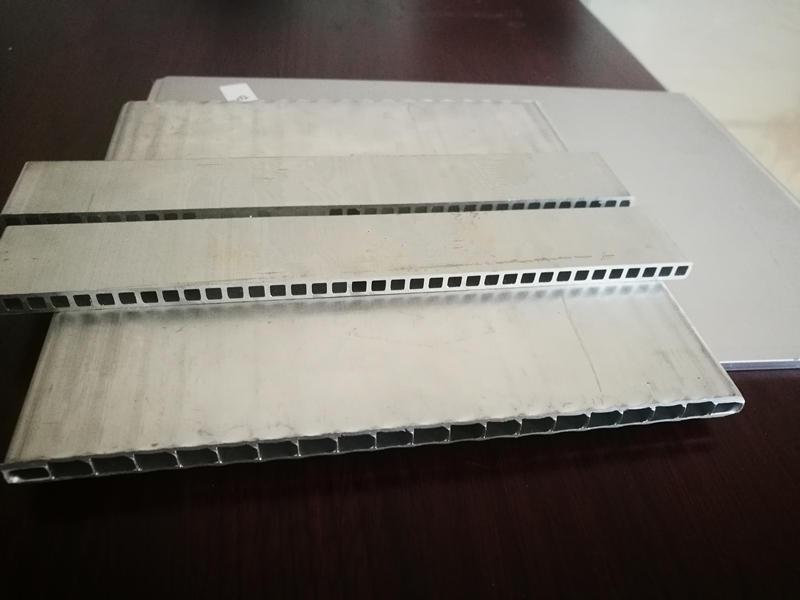

Aluminum parallel flat tube china suppliers

Aluminum parallel flat tube is mainly used for the production of heat exchangers. Due to its high corrosion-resistance & good heat conductivity, Aluminum parallel flat tube is particularly well suited for the use in evaporators & condensers. Aluminum parallel flat tube is required increased burst strength and better heat conductivity for an optimized product size.



Aluminum parallel flat tube commonly used material data sheet :

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
2	1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.10	---	---
3	3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
4	3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05



Alloy	Temper	Tensile Strength	Yield Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥20MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥20MPa	≥25%

Application of Aluminum parallel flat tube :
Aluminum parallel flat tube is mainly used in automobile air conditioning heat exchanger system .
